Automated SORTER

The main task of the sorter is to transport packages to their appropriate destinations where products completion for shipment to specific locations takes place. The system is capable of identifying a package by scanning the barcode placed on it, and after communicating with the WMS system, it can send the product to the appropriate location based on the information received from the higher-level system.

Sorter is fed by inbound lines. The amount of these lines is dependent on needed throughput of the system. Lines are operated by employees who work at feeding workstations. All inbounds lines are merged to one main line, which transports the products to the sorter.

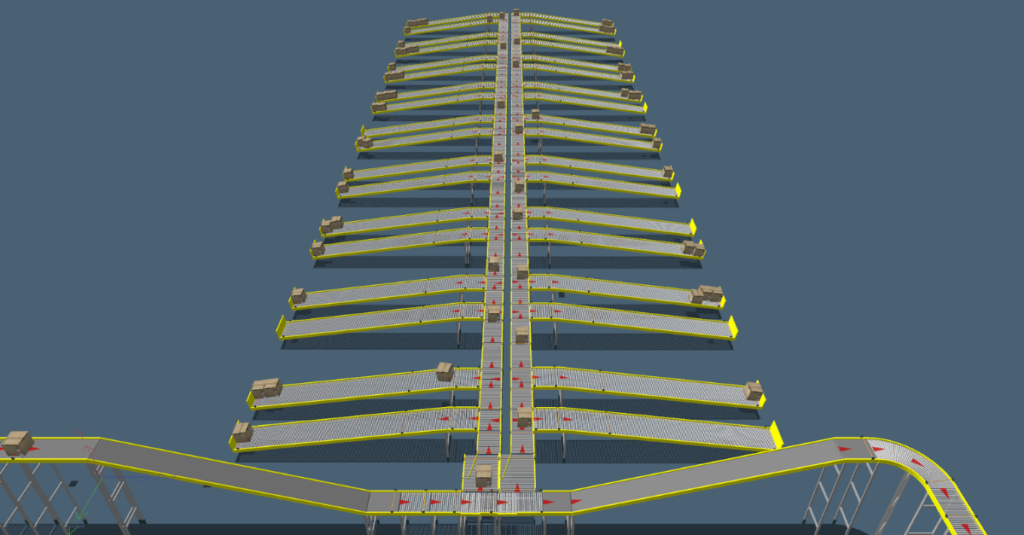

Sorter is designed to handle the flow of products with a capacity of up to 2000 per hour. It handles cartons, crates, and trays and is built with conveyors and roller drops.

Standard system scans a label with a barcode placed at a defined location on the product. After exchanging information with the higher-level WMS system, it directs the product to the appropriate destination. The number of feeding lines, loading stations, and destinations is tailored to each customer’s specific requirements.

• Capacity:up to 2000 products/hour – capacity can be increased by adding additional sorting lines
• Supported products: cartons, crates, trays
• Product dimensions: from 200x150x50mm to 800x800x800mm
• Product weight: from 0.5kg to 30kg
• Ambient temperature: from 0°C to 40°C
• Code reading: at the defined location on the product

Sorter is designed to handle product flow at a capacity of up to 5000 per hour. It can handle cartons, crates, trays, and envelopes.

Advanced system, using a scanning tunnel, reads the label with a barcode placed anywhere on the product. After exchanging information with the higher-level WMS system, it directs the product to the appropriate destination. The number of feeding lines, loading stations, and destinations is tailored to individual customer requirements.

• Capacity: up to 5000 products/hour
• Supported products: cartons, crates, trays, poly mailers, envelopes
• Product dimensions: from 100x150x10mm to 800x800x800mm
• Product weight: from 0.01kg to 30kg
• Ambient temperature: from 0℃ to 40℃
• Code reading: on any side of the product without the need for precise label positioning
• Additionally:
  • Automatic parcel dimensioning
  • Automatic image capture of each parcel
  • Communication and data recording to the higher-level system
  • Compact installation size.

If you would like to learn more about the standard and advanced versions of the sorter, we invite you to contact us. We would be pleased to familiarize ourselves with your needs and select the appropriate solution.
